Architecture

The Context Catalog is composed of a few cooperating services: an edge that authenticates traffic, an asynchronous pipeline that ingests items from external systems, and a backend that stores them, exposes them through APIs, and evaluates them against compliance rules.

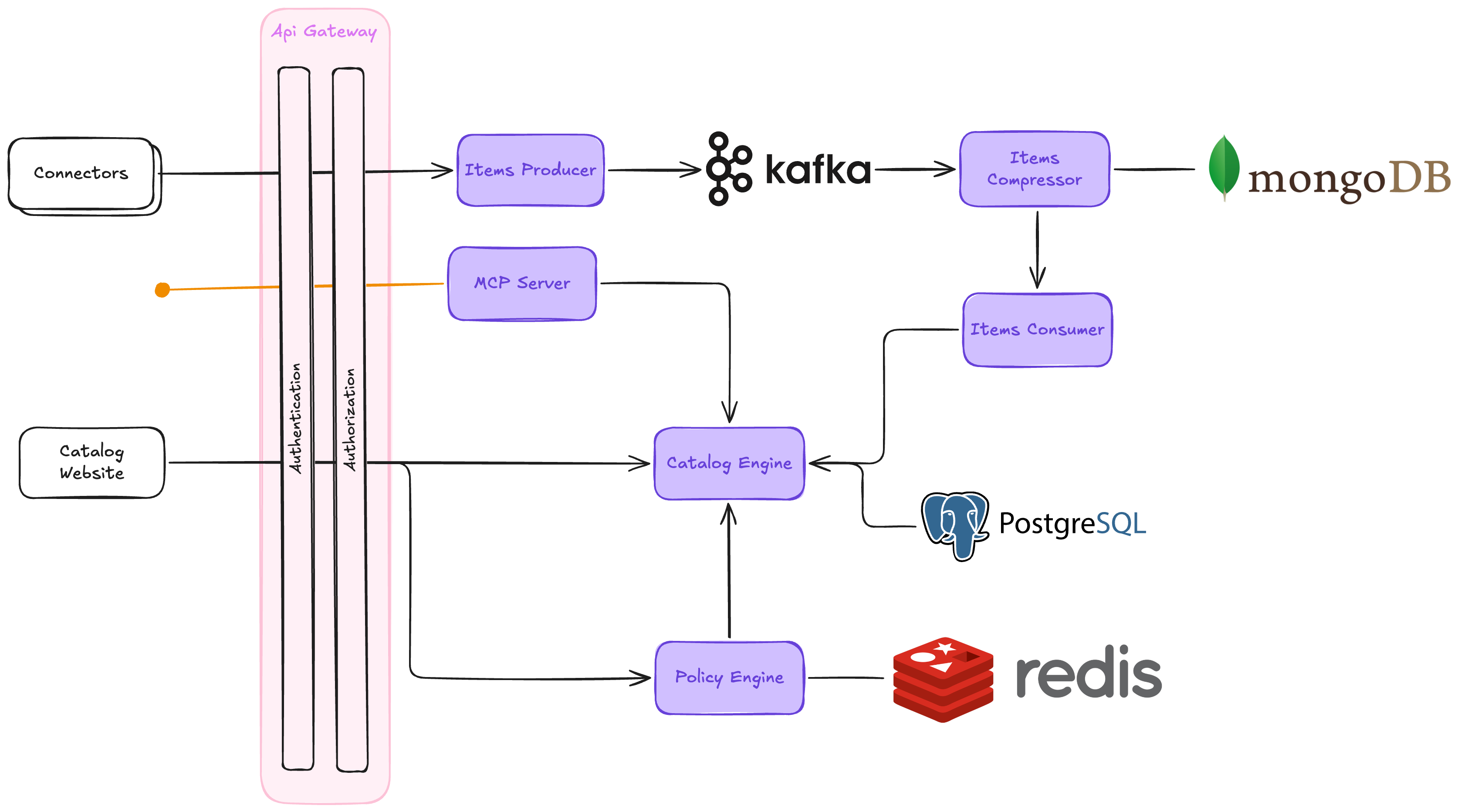

Context Catalog architecture

Edge​

All client traffic enters through the API Gateway, which handles Authentication and Authorization before routing requests downstream.

Two kinds of clients sit in front of the gateway:

  • Catalog Website: the browser application that powers the Catalog Administration, used by humans to browse and configure the catalog.
  • Connectors: agents that feed the catalog with data from external systems (Mia-Platform Console, source-code hosts, artifact registries, cloud providers, etc.). The reference implementation is ibdm.

Ingestion pipeline​

Items pushed by connectors do not land in the database directly: they flow through an asynchronous pipeline built around Kafka that absorbs bursts and deduplicates redundant updates before applying them to the catalog. A MongoDB instance is used by the pipeline as working memory to collapse repeated changes for the same item.

Backend​

The Catalog Engine is the core of the system. It persists items, item types, relationships, and governance objects to its own PostgreSQL database, and exposes the public REST API used by the website, the connectors, and any external integration.

Two more services sit alongside the Catalog Engine and are reached through the API Gateway:

  • MCP Server: a thin front-end that lets LLM clients query catalog content through the Model Context Protocol by talking to the Catalog Engine on their behalf.
  • Policy Engine: the component that runs the rules defined as evaluation criteria, scorecards, and campaigns, and uses Redis to cache hot inputs and intermediate state. Verdicts are returned to the Catalog Engine, stored against the originating rule, and exposed through the API and the UI.
