Observability

The Observability page gives you real-time visibility into how your agents and playbooks are performing in production. It surfaces aggregate usage statistics, charts, and a searchable session list, making it easier to diagnose problems, monitor costs, and understand usage patterns across your AI workloads.

Getting there

Navigate to Observability from the left sidebar. The page is split into two tabs:

• Overview (aggregate metrics and charts)
• Sessions (a searchable log of individual sessions).

Filter bar

All views on the Observability page are driven by a shared filter bar at the top:

Filter	Description
Playbook	Select a specific playbook to narrow metrics and session list to that playbook's activity.
Date range	Pick a start and end date. Metrics and charts update to cover only the selected time window.
User ID	Optionally enter a user ID to filter sessions belonging to a specific end user.

Overview tab

The Overview tab shows aggregate statistics and time-series charts for the selected filter scope.

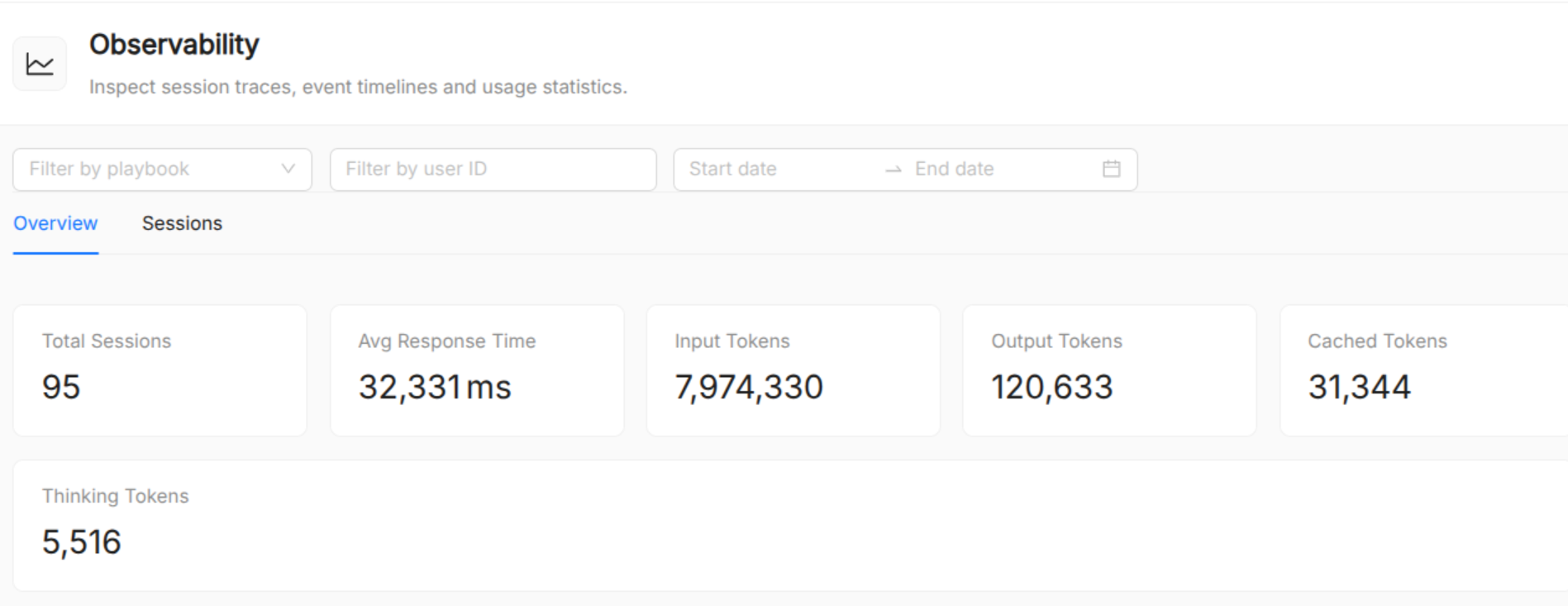

Statistics cards

Six summary cards appear at the top of the Overview:

Metric	Description
Total Sessions	Number of agent sessions recorded in the selected window.
Avg Response Time	Mean end-to-end response latency in milliseconds.
Input Tokens	Total tokens sent to LLM providers (prompt + context).
Output Tokens	Total tokens generated by LLM providers.
Cached Tokens	Tokens served from the provider's prompt cache (reduces cost).
Thinking Tokens	Tokens consumed by extended-thinking / reasoning steps (if enabled).

Charts

Below the cards, four charts visualize trends over the selected time range:

• Success / failure rate: Pie chart showing the proportion of sessions that completed successfully versus those that ended in an error.
• Agent distribution: Bar chart showing how many sessions used each agent.
• Tool usage frequency: Bar chart showing the most frequently called tools across all sessions.
• Sessions over time: Line chart showing session volume per day/hour.
• Token consumption over time: Stacked area chart breaking down input, output, cached, and thinking tokens per day/hour.

Sessions tab

The Sessions tab lists every recorded session in a paginated table, with 20 rows per page.

Columns

Column	Description
Agent/Playbook	The playbook (or agent) that handled the session.
Session ID	Truncated session identifier; hover to see the full ID.
Session name	Human-readable label for the session (if set by the caller).
User ID	The end-user identifier passed at session creation time.
Events	Total number of events recorded in the session.
Duration	Wall-clock duration from the first to the last event.
Tokens	Compact token summary (↑ input, ↓ output, cached, thinking).

Opening a session

Click any row to open the Session Detail page for that session, or use the drawer preview to inspect the event timeline without leaving the list.

Session Detail page

The Session Detail page (/observability/sessions/:sessionId) provides a full trace of a single session.

Event timeline

Events are displayed in chronological order. Each event is annotated with:

• Type tag (color-coded): User Message, Agent Message, Tool Call, Tool Response, Handoff, or Other.
• Timestamp: When the event occurred.
• Author: Which agent produced the event (useful for multi-agent flows).

Event content

Event type	Rendered as
User/Agent text	Whitespace-preserved text block.
Tool call	Collapsible JSON block showing the function name and arguments.
Tool response	Collapsible JSON block showing the function result (or error message).
Inline image	Base64-decoded image rendered inline.

Token usage (input, output, cached, thinking) is shown per event when available from the provider.

See also

• Playbook: multi-step agentic workflows whose sessions are tracked here.
• Agent: the execution unit whose calls are recorded as events.
• AI Foundry Overview: platform overview including the AI Playground.
